Steve Parker's Exhaust System 200 Tdi into Series
By: Arjan Date: September 9, 2016, 9:20 am
---------------------------------------------------------
Bonjour Tous !
We're fitting a 200 Tdi (Ex Discovery) and a recon gearbox to
the Series later this month.
As the present system is an original 2.25 system and in not too
good conditio, we might aswell go for a new system.
Is it worth getting one of the SP one's ?
... or do our beloved members have other & better ideas...
#Post#: 101727--------------------------------------------------
Re: Steve Parker's Exhaust System 200 Tdi into Series
By: Fluffle-Valve Date: September 9, 2016, 2:30 pm
---------------------------------------------------------
Well, I was going to go with a Steve Parker, but the price for
now just put me off. That's not to say I won't buy one when I've
got the cash.
So, I built my own out of Disco and Defender bits because the
bigger bore is better than the Series bore.
Here it is.

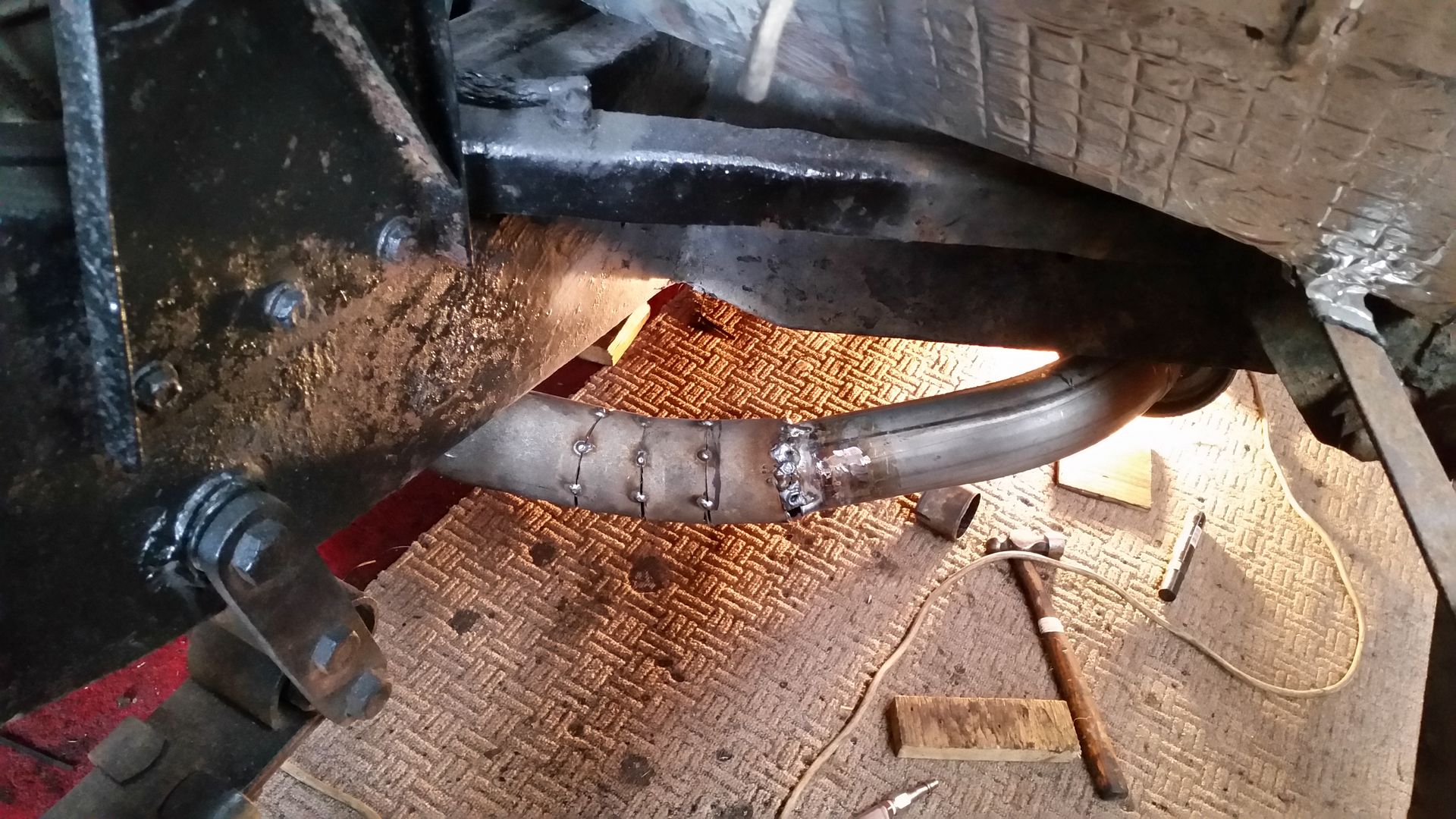

Started off welding bits together.
HTML http://i260.photobucket.com/albums/ii6/Fluffle-Valve/Fluffle%20web%20Site/FVE%20Rebuild/Exhaust/2016-09-02%2016.09.14.jpg

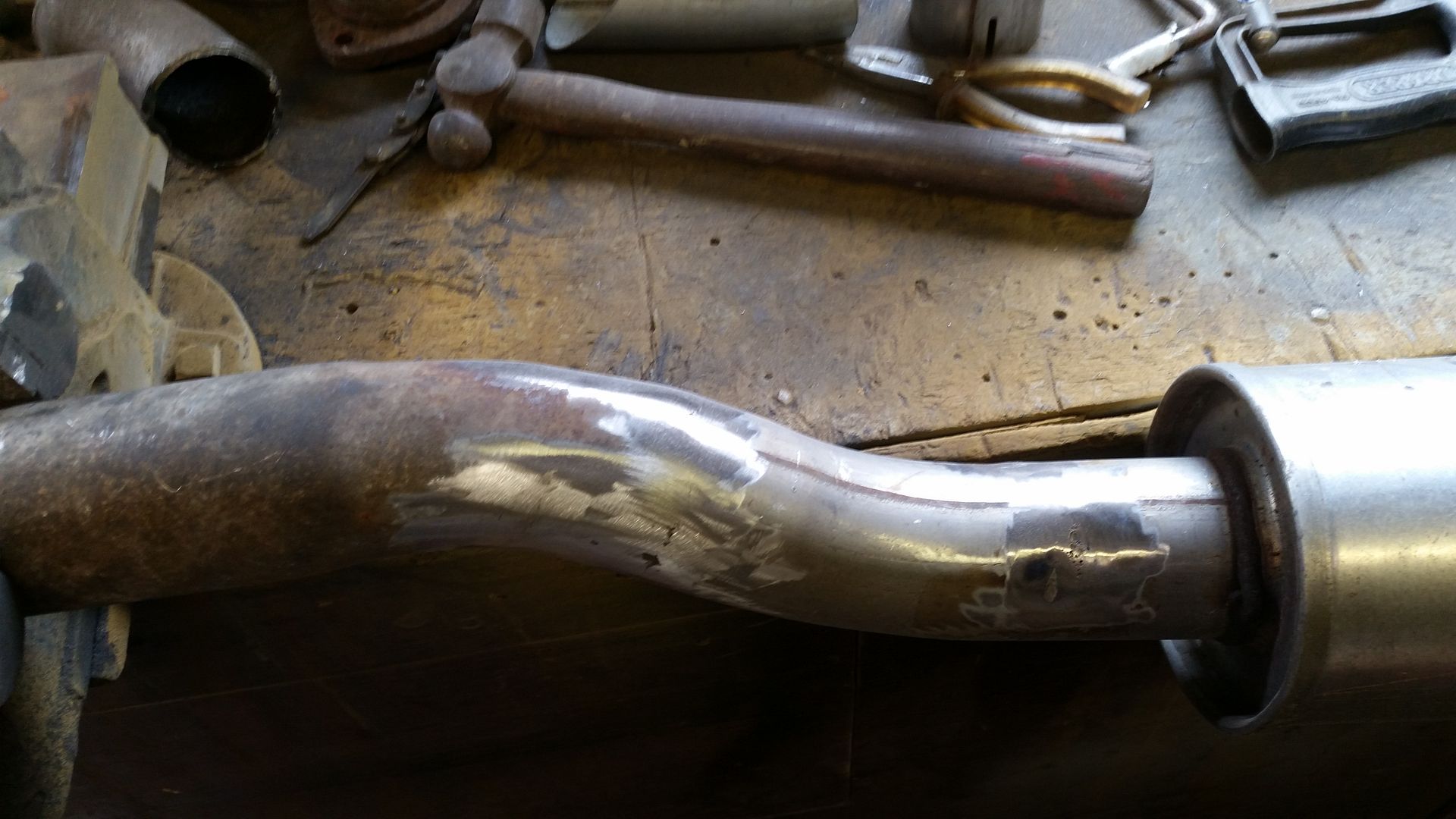

Ground off the welds to try and make it look like one piece.
HTML http://i260.photobucket.com/albums/ii6/Fluffle-Valve/Fluffle%20web%20Site/FVE%20Rebuild/Exhaust/2016-09-02%2016.17.38.jpg

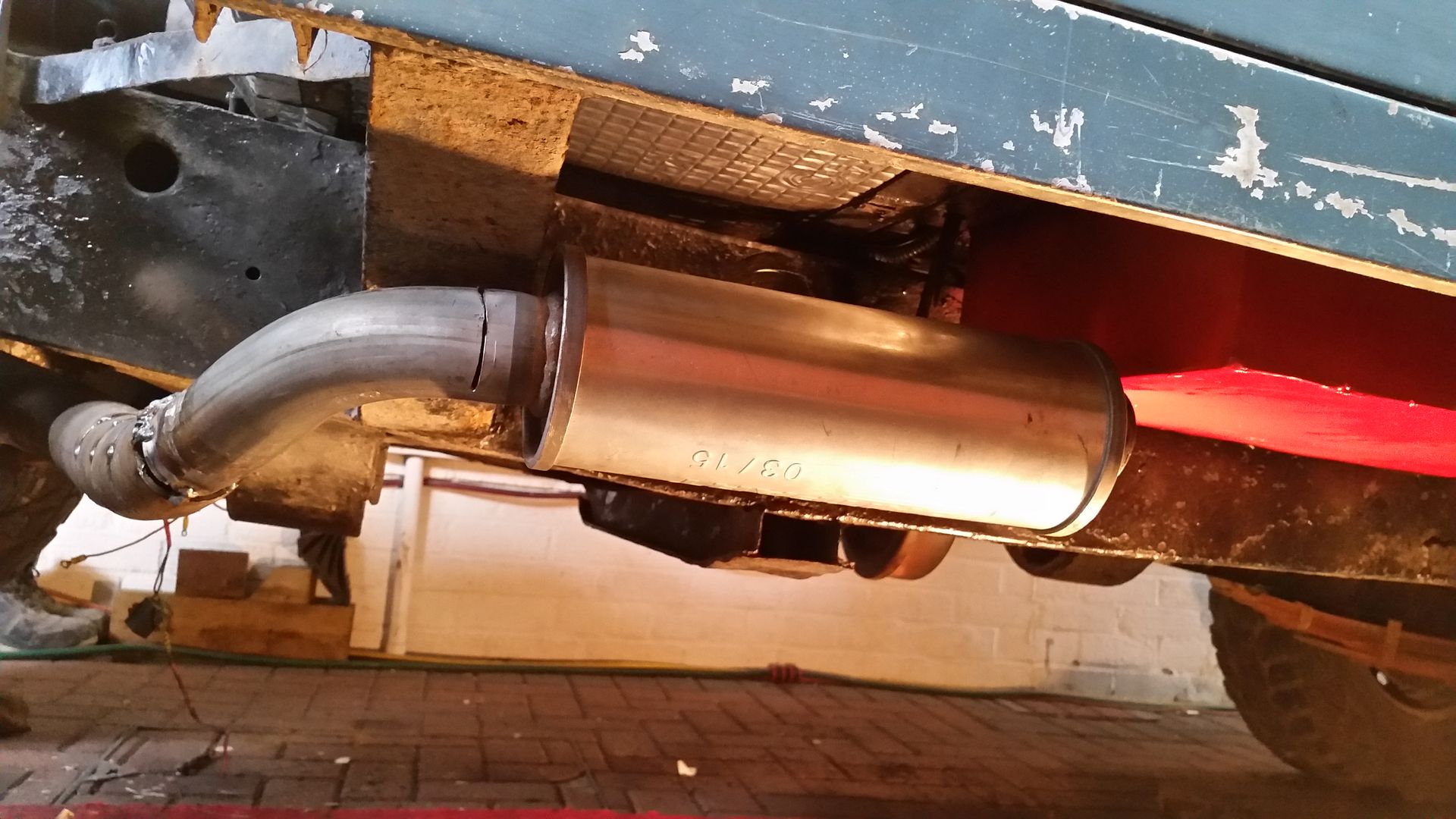

Welded in a couple of straight through silencers.
HTML http://i260.photobucket.com/albums/ii6/Fluffle-Valve/Fluffle%20web%20Site/FVE%20Rebuild/Exhaust/2016-09-02%2016.09.26.jpg
Eventually got this.
HTML http://i260.photobucket.com/albums/ii6/Fluffle-Valve/Fluffle%20web%20Site/FVE%20Rebuild/Exhaust/2016-09-03%2021.41.36.jpg

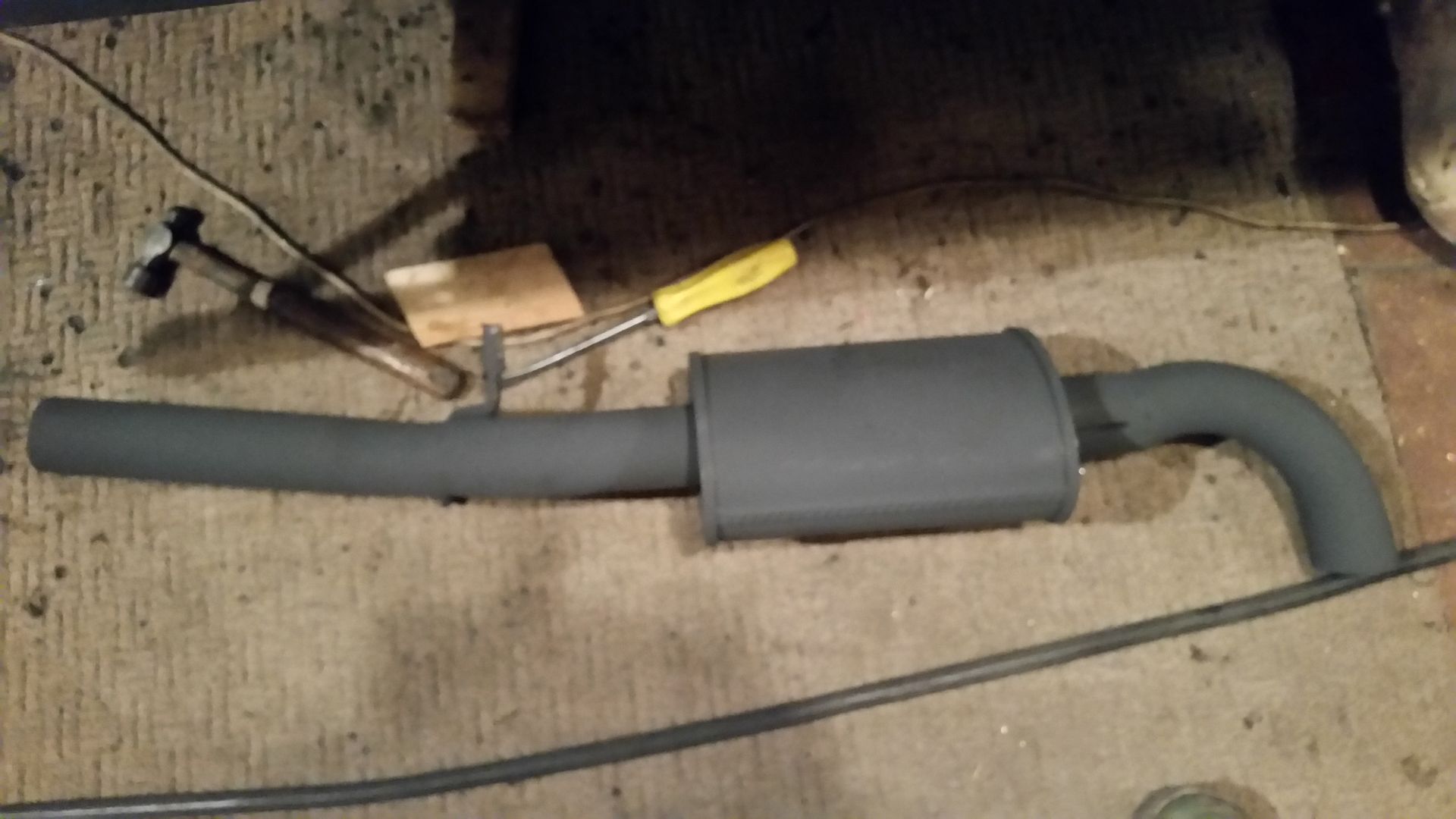

Then made a rear section and after grinding the welds, I painted
it in "Stove Enamel".
HTML http://i260.photobucket.com/albums/ii6/Fluffle-Valve/Fluffle%20web%20Site/FVE%20Rebuild/Exhaust/2016-09-03%2022.02.08.jpg

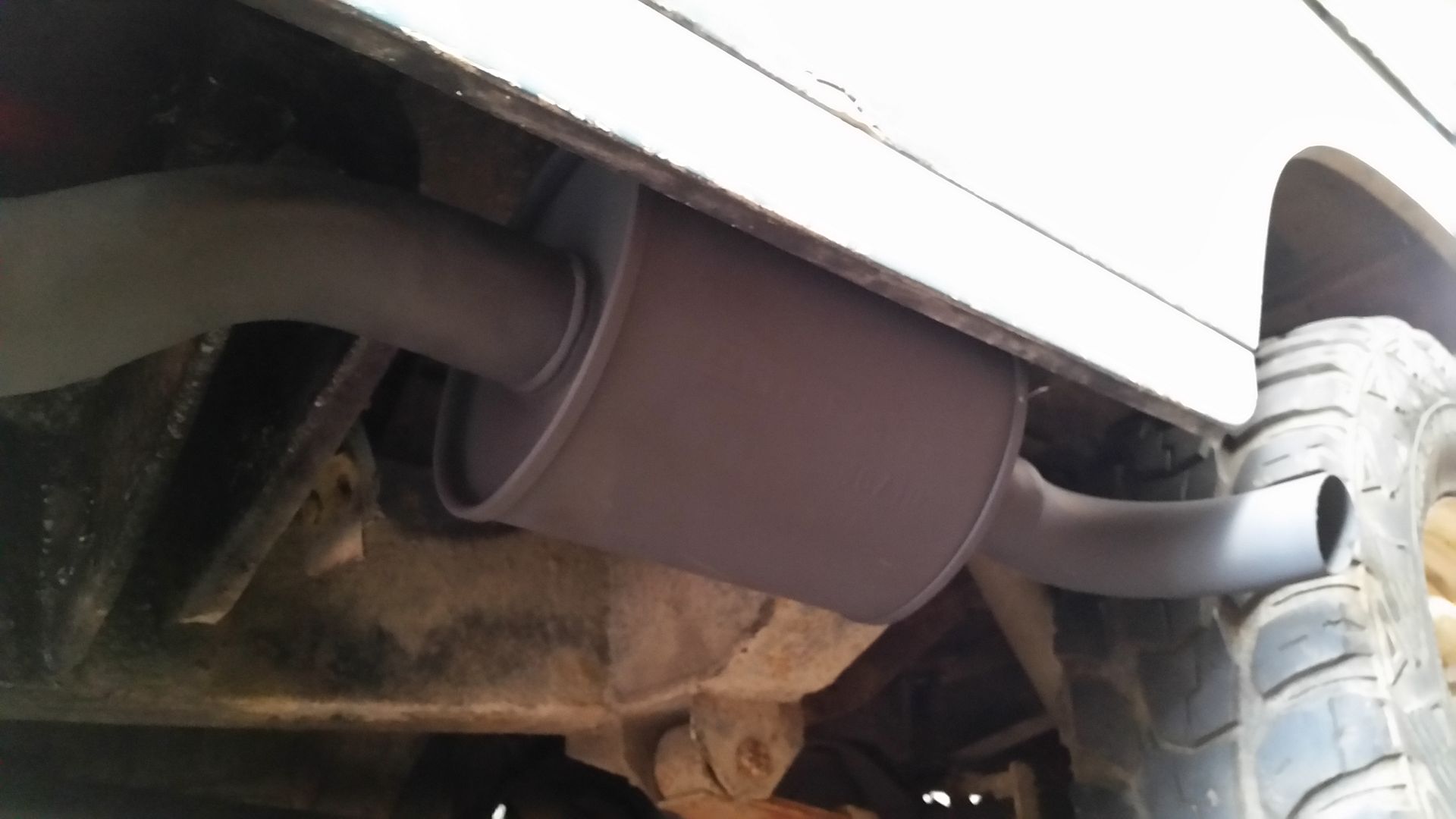

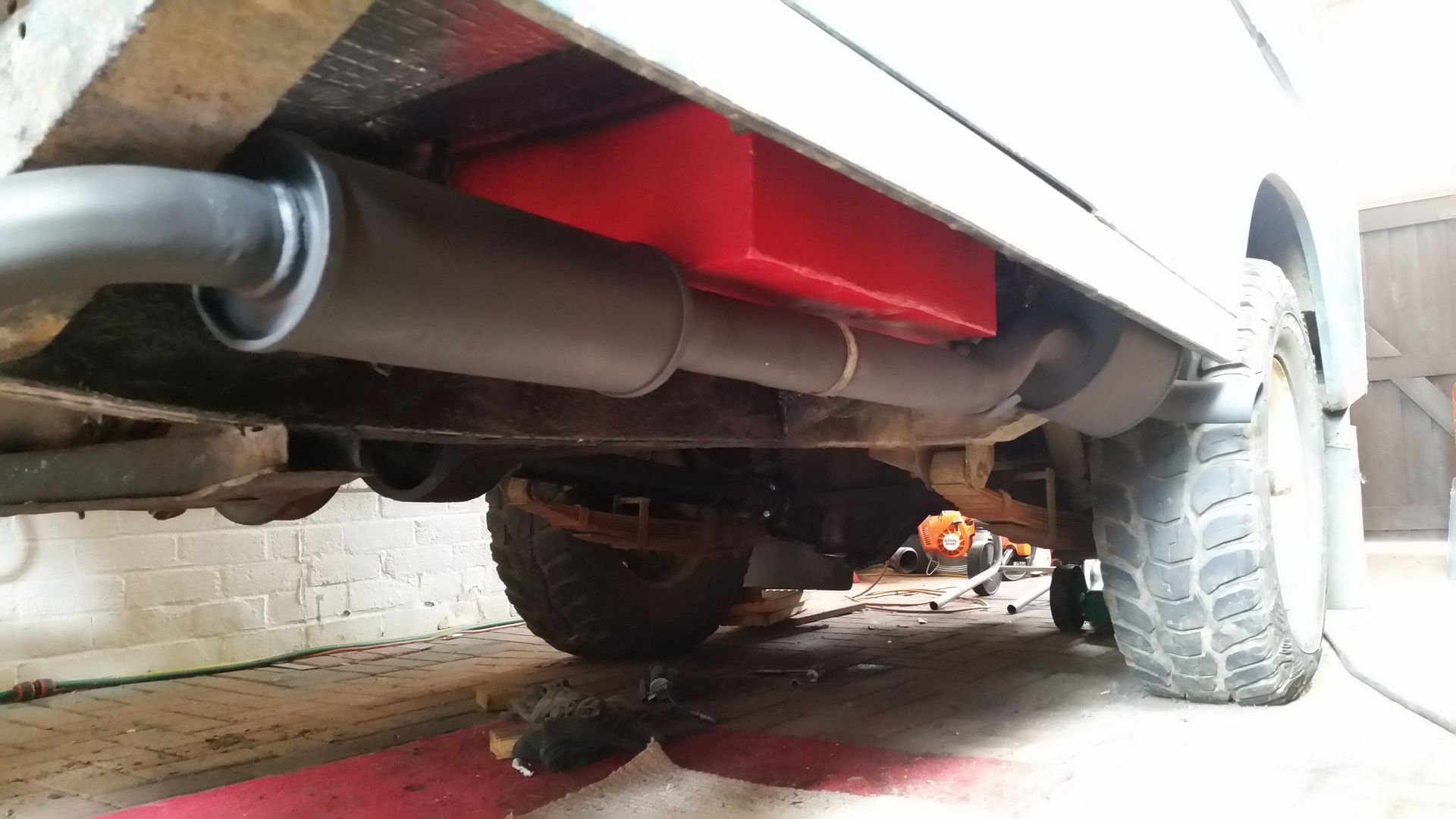

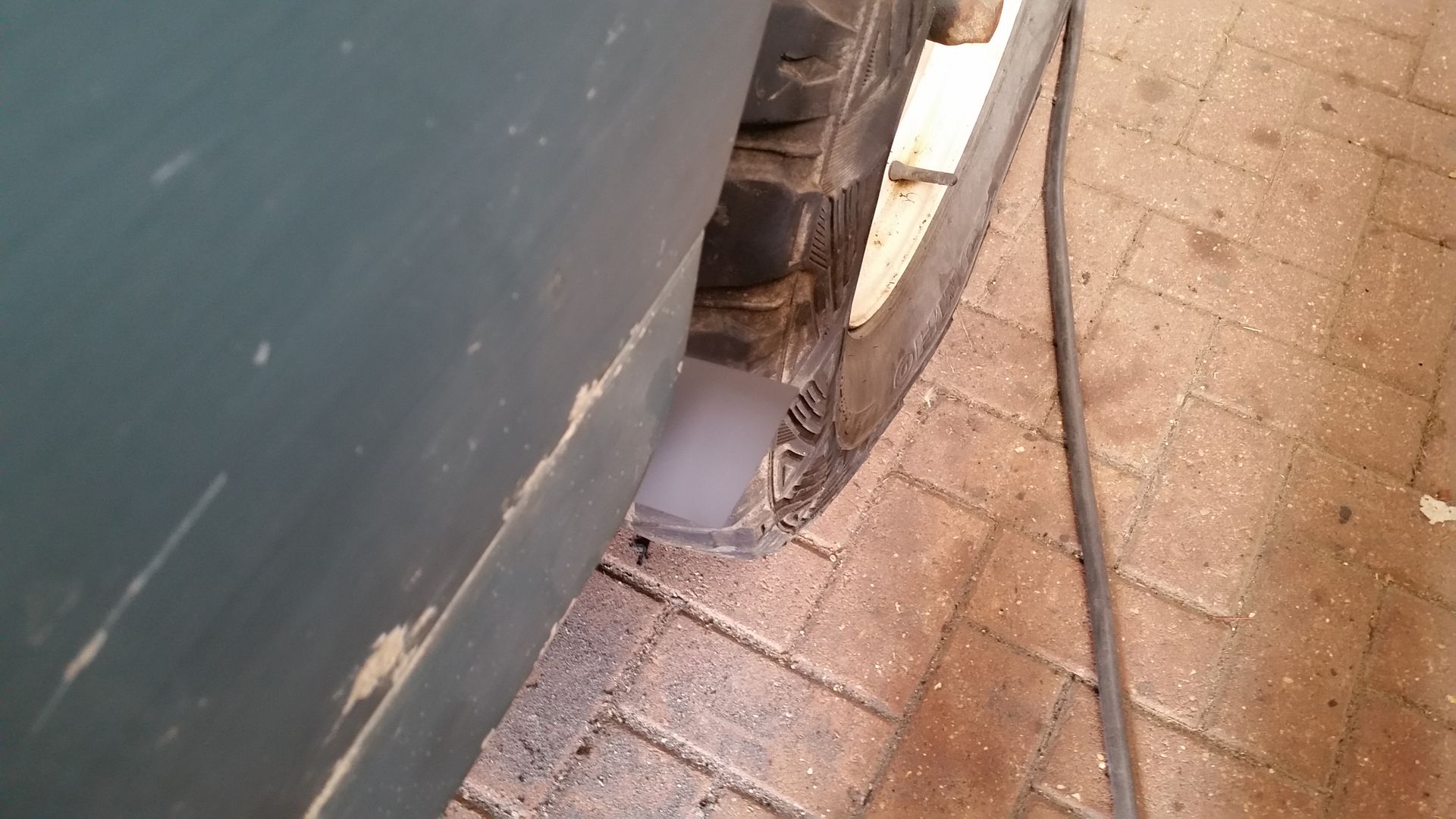

Then fitted it when it had dried off.
HTML http://i260.photobucket.com/albums/ii6/Fluffle-Valve/Fluffle%20web%20Site/FVE%20Rebuild/Exhaust/2016-09-04%2014.04.07.jpg
HTML http://i260.photobucket.com/albums/ii6/Fluffle-Valve/Fluffle%20web%20Site/FVE%20Rebuild/Exhaust/2016-09-04%2014.03.28.jpg
HTML http://i260.photobucket.com/albums/ii6/Fluffle-Valve/Fluffle%20web%20Site/FVE%20Rebuild/Exhaust/2016-09-04%2014.04.46.jpg
I took me just over a day to do.
#Post#: 101729--------------------------------------------------
Re: Steve Parker's Exhaust System 200 Tdi into Series
By: Arjan Date: September 9, 2016, 2:40 pm
---------------------------------------------------------
Nice Job :thumbs:
I really need to learn to weld... :banghead
#Post#: 101730--------------------------------------------------
Re: Steve Parker's Exhaust System 200 Tdi into Series
By: hippydave Date: September 9, 2016, 3:08 pm
---------------------------------------------------------
I have the Steve Parker kit on my 200tdi and it just fits and
does the job not as cheap as Mr Fluffles but if you cant weld id
recommend it.
*****************************************************
