#Post#: 4692--------------------------------------------------
Big Ears
By: NiteMare Date: January 15, 2012, 11:41 am
---------------------------------------------------------

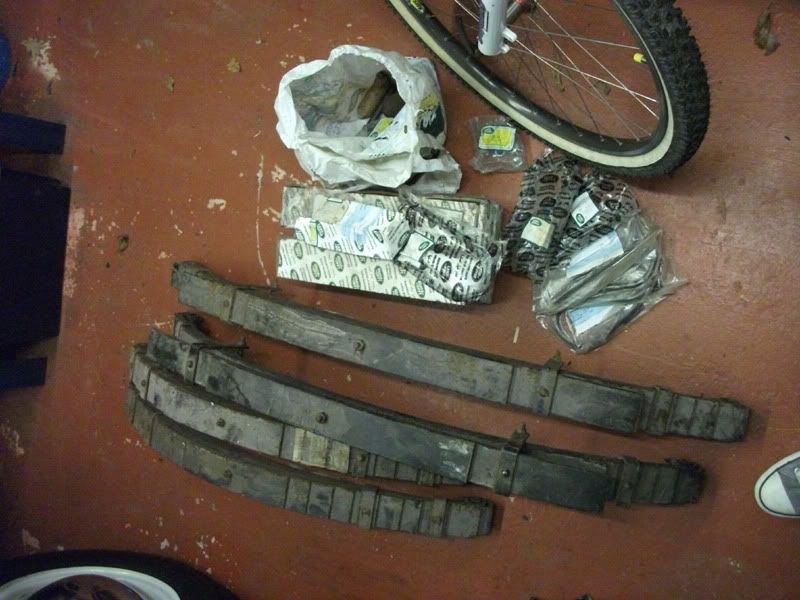

new bits as collected yesterday
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/Summer2011156.jpg
this will give me an excuse to get my finger out and replace the
engine and front axle tube
(i'll start to complete this thread with the rebuild over the
next few days as i don't seem able to copy it off the old site)
#Post#: 4816--------------------------------------------------
Re: Big Ears
By: NiteMare Date: January 15, 2012, 3:23 pm
---------------------------------------------------------
ok i'll start with just a little
this is as found looking quite good but with a fair bit of rot
in the bulkhead and a bit round the chassis, 2.25 petrol engine,
sweet 2a gearbox and a very nice Aeroparts winch (along with an
easily repairable bulkhead sitting in the tub)
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/Picture004.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/Picture005.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/Picture003.jpg[/img]
i towed him home and parked him up for the next 12 months whilst
i collected parts and contemplated my belly button fluff
eventually i made a start, bought Les Cromie' footwells and got
stuck into the bulkhead repairs
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/Picture021.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures004.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures003.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures010.jpg[/img]
eventually after cutting out lots of bits and glueing new bits
in we got to this stage
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/newbrakes007.jpg[/img]
then it was onto stripping the front down
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures022.jpg[/img]
rusty bits
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures007.jpg[/img]
rusty bits coming out
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures024.jpg[/img]
and repairs going in
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures002.jpg[/img]
all closed up
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures011-1.jpg[/img]
outrigger off
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures014-1.jpg[/img]
minor repair
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures015-1.jpg[/img]
outrigger with plate removed ready to weld onto chassis
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures012-1.jpg[/img]
greedy petrol burner removed
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures021.jpg[/img]
screen, doors and steering removed
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures023.jpg[/img]
bulkhead and the rest of the gubbins coming out
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures028.jpg[/img]
gearbox removed, chassis wire mopped and red oxided
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures027.jpg[/img]
gearbox cleaned, chassis blacked, 200tdi with 300tdi manifolds
and turbo
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures031.jpg[/img]
posh rebuilt bulkhead and doors refitted and properly aligned
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures-1.jpg[/img]
pedals and all other fitments having been cleaned and painted
being refitted
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures003-2.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures005-1.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures006-1.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures002-1.jpg[/img]
test fitting the TD5 intercooler and working out the pipe
routing
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures013-1.jpg[/img]
modified rad' panel and rad' frame
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures006-2.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures007-1.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures011-2.jpg[/img]
more paint
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures007-2.jpg[/img]
and polish
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures008-2.jpg[/img]
my own interpretation of spaghetti
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures001-2.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures002-3.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures003-4.jpg[/img]
sorting pipe connections
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures001-3.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures002-4.jpg[/img]
more bits on ;D
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures002-5.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/randomBigEarsrebuildpictures001-4.jpg[/img]
hmmm seems like the front end is mostly finished ;D
now it's time to start the back end
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs002.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs004.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs005.jpg[/img]
oops another outrigger needed
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs007.jpg[/img]
and then time to replace the rear crossmember and repair the end
of the chassis rails (start by building jig)
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs009.jpg[/img]
start cutting
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs012.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs013.jpg[/img]
and while we're at it we best remove some old repairs/rot
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs014.jpg[/img]
oops no pictures of the actual repairs so you'll have to make do
with the finished and red oxide coated picture
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs004-1.jpg[/img]
tub and screen back on
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs003-2.jpg[/img]
front back together
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs005-2.jpg[/img]
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/RandomBigEarsRepairs003-3.jpg[/img]
mot day ;D absolutely zero advisories
[IMG]
HTML http://i259.photobucket.com/albums/hh311/NiteMare_08/My%201965%20109/DSC00010.jpg[/img]
ok i've skimped a little with the words but i like pictures ;D
#Post#: 4817--------------------------------------------------
Re: Big Ears
By: hippydave Date: January 15, 2012, 3:26 pm
---------------------------------------------------------
very good pics
#Post#: 4892--------------------------------------------------
Re: Big Ears
By: stuey Date: January 15, 2012, 5:10 pm
---------------------------------------------------------
Cool pics, liking the look of that too, to all appearances
looks like a very tidy 'unmolested' 2a, until you look under
the bonnet - V nice 8)
#Post#: 5349--------------------------------------------------
Re: Big Ears
By: bogfog Date: January 17, 2012, 4:24 pm
---------------------------------------------------------
Hope my old 59 looks as good as big ears when youve finished
it... just love the wireing,, we need to start a thread for
gordon,,,
#Post#: 5356--------------------------------------------------
Re: Big Ears
By: drumlisden Date: January 17, 2012, 4:32 pm
---------------------------------------------------------
Good job done there Nitemare 8)
#Post#: 5404--------------------------------------------------
Re: Big Ears
By: Waldorf Date: January 18, 2012, 4:27 am
---------------------------------------------------------
Very nice.
#Post#: 5417--------------------------------------------------
Re: Big Ears
By: simes2000 Date: January 18, 2012, 6:21 am
---------------------------------------------------------
Neatest 'spaghetti' I have ever seen!
#Post#: 5418--------------------------------------------------
Re: Big Ears
By: BEY C Date: January 18, 2012, 6:27 am
---------------------------------------------------------
Can I ask, when you repaired the bulkhead, did you make up the
steel angles to replace the rotten door seal retainers or is it
an off the shelf angle?
Ta, Dan
#Post#: 5421--------------------------------------------------
Re: Big Ears
By: Calum Date: January 18, 2012, 6:45 am
---------------------------------------------------------
Always liked this motor - very nice indeed! There's just
something about lights-in-grille 109"s I really like! Where did
the winch end up?
*****************************************************
