#Post#: 30616--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: FenTiger
Date: July 12, 2012, 12:47 am
---------------------------------------------------------
Hodgey has done this conversion. Worth looking at his v8 S2
rebuild thread.
#Post#: 30618--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: Moogling
Date: July 12, 2012, 1:30 am
---------------------------------------------------------
--- Quote from: mistericeman link ---
>
> Well you did ask .....Bought it like that and as soon as the
galvy chassis has rusted out I'll replace it with the correct
chassis ;D
>
--- End Quote ---
Fair Enough!
101 axles.... humm parts arn't exactly readily available though!
Thanks, I've pm'ed hodgey
#Post#: 30631--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: edd
Date: July 12, 2012, 3:31 am
---------------------------------------------------------
Landrover increased the track on the rail rover by about 7
inches by using spacers between FC wheels and the brake drum.
Would probably kill the bearings quite quickly though. You
could go for spacers on the end of the axle casing and then use
longer halfshafts.
Ed
#Post#: 30633--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: s.o.t.d.
Date: July 12, 2012, 3:59 am
---------------------------------------------------------
If you use coil axles, you can mitigate the "out-of-wing" effect
by using steel disgay rims. These are very strong, are 7" wide,
are proper tubeless rims, have virtually no offset and you can
pick them up for peanuts (or even for free!).

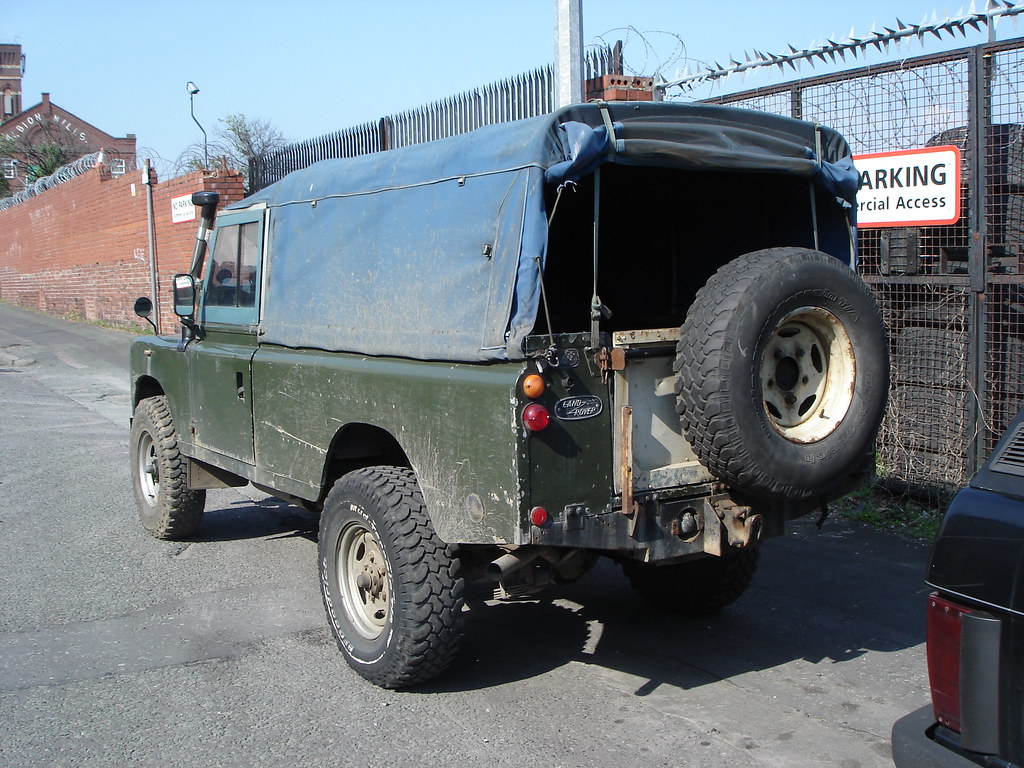

This is Dougal with 6" wider Series axles. (Yes.....such things
do exist!)
HTML https://farm1.staticflickr.com/710/22501617325_c008a1ddef_b.jpg
HTML https://farm1.staticflickr.com/648/22071751133_fb0e66d77f_b.jpg
HTML https://farm1.staticflickr.com/635/22692921865_1f25290548_b.jpg
HTML https://farm1.staticflickr.com/623/22071766853_59f8c1b106_b.jpg
#Post#: 30654--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: seriesewan
Date: July 12, 2012, 7:25 am
---------------------------------------------------------
ok... showing my bi - cureous side here :gay: & apologies for
the thread hijack too, but my current wheel / tyre combination
is rapidly deteriorating & i am skint, hearing that you can get
such things for peanuts has my attention!
will standard steel discovery 1 wheels take a 235/85/r16 tyre &
will this combination sit under a SWB series 3 with no extra
bolt on/ hassle?
#Post#: 30660--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: Moogling
Date: July 12, 2012, 11:17 am
---------------------------------------------------------
--- Quote from: s.o.t.d. link ---
>
> If you use coil axles, you can mitigate the "out-of-wing"
effect by using steel Disco rims. These are very strong, are 7"
wide, are proper tubeless rims, have virtually no offset and you
can pick them up for peanuts (or even for free!).
>
> This is Dougal with 6" wider Series axles. (Yes.....such
things do exist!)
>
>
>
--- End Quote ---
Looks great! How did you sort out the steering issue, I can see
it's cranked, but also INFRONT of the axle??
#Post#: 30681--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: Lurch
Date: July 12, 2012, 2:17 pm
---------------------------------------------------------
Stig, you missed out the pic from above...... ;D
#Post#: 30725--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: s.o.t.d.
Date: July 12, 2012, 6:37 pm
---------------------------------------------------------
--- Quote from: seriesewan link ---
>
> ok... showing my bi - cureous side here :gay: & apologies for
the thread hijack too, but my current wheel / tyre combination
is rapidly deteriorating & i am skint, hearing that you can get
such things for peanuts has my attention!
>
> will standard steel discovery 1 wheels take a 235/85/r16 tyre
& will this combination sit under a SWB series 3 with no extra
bolt on/ hassle?
>
>
>
>
--- End Quote ---
Yes, they will fit straight on, but you may lose a small amount
of steering lock because of the lack of offset on the rims.
However I don't think this will be much of a problem on an 88".
Strang of this Parish can enlighten more on this, he's had them
on his 88" for yonks. :gay:
#Post#: 30726--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: s.o.t.d.
Date: July 12, 2012, 6:47 pm
---------------------------------------------------------
[/quote]
Looks great! How did you sort out the steering issue, I can see
it's cranked, but also INFRONT of the axle??
[/quote]
The axle came with the track rod still attached. As I said , it
is a Series axle, that is the standard position for the track
rod. It's cranked to clear the Salisbury diff. casing.
#Post#: 30727--------------------------------------------------
Re: what are standard Axle Widths?
DIR By: s.o.t.d.
Date: July 12, 2012, 6:49 pm
---------------------------------------------------------
--- Quote from: Lurch link ---
>
> Stig, you missed out the pic from above...... ;D
>
--- End Quote ---
God hasn't e-mailed the picture from Heaven yet Pete! ;D
*****************************************************
