#Post#: 45--------------------------------------------------
The internals of the steering relay
By: mistericeman Date: January 4, 2012, 1:45 pm
---------------------------------------------------------
Ever wanted to know what's inside a series steering relay BUT
were frightened to look ???
Ok then here you go ...........
HTML http://i93.photobucket.com/albums/l72/spellcaster69/Picture008.jpg

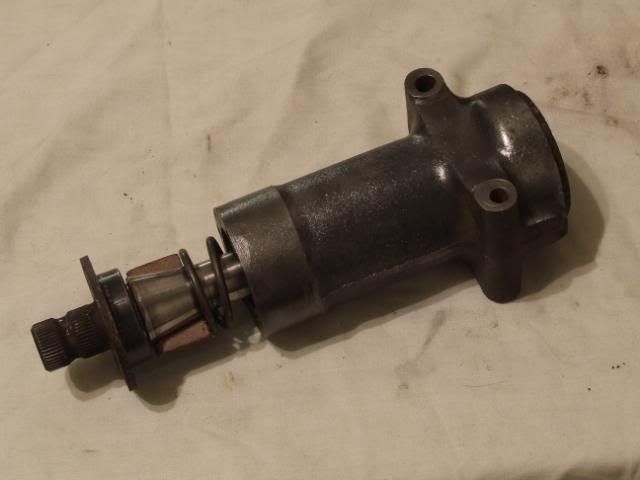

You can see the one half of the "split bush" at the end of the
devils spring.
there are two split bushes top and bottom of the relay ,forced
apart by the devils spring in the middle (as the bushes wear
(similar material to railko bush material) they are pushed
further apart to compensate )

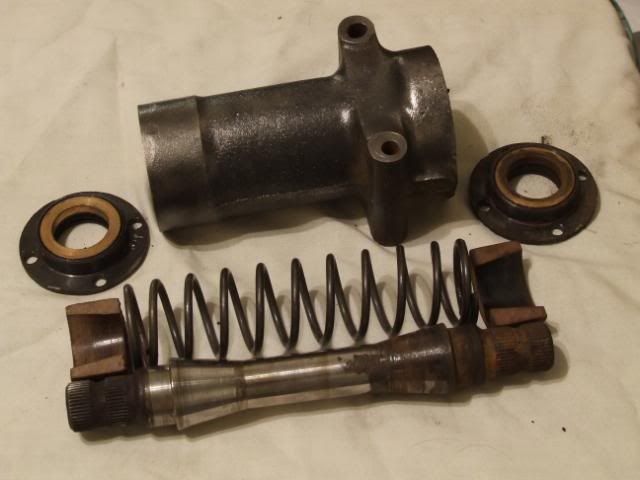

HTML http://i93.photobucket.com/albums/l72/spellcaster69/Picture005.jpg
HTML http://i93.photobucket.com/albums/l72/spellcaster69/Picture006.jpg

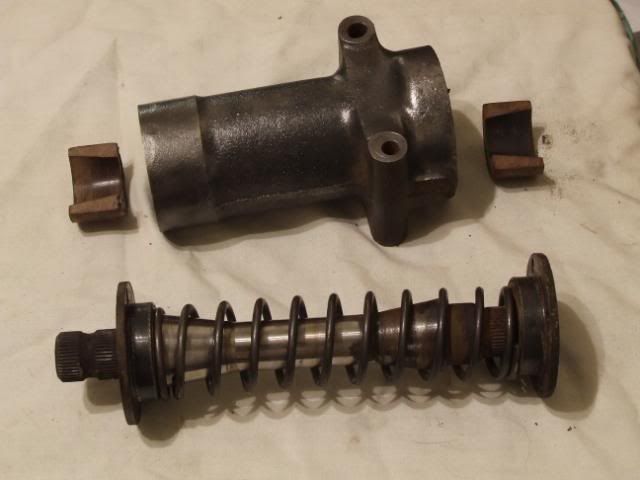

If you look closely at this pic,you should be able to make out
,that the bottom split bush of the relay is in good clean order
,as is the relay shaft .
Whereas the top one has obviously suffered from lack of
lubricant ,and possibly water ingress ,and the bush has a dark
almost overheated look and the corresponding section of the
idler shaft is rusty and pitted and thus fooked ...............
I presume that the bottom bush has preserved a amount of
lubricant around it ,where the upper one has run dry .
Remove one of the retaining bolts and fit with a grease nipple
??? ? might be a better option .
WORD OF WARNING
The devils spring is under some pressure when in situ in the
idler ,and if you are not careful when removing either end of
the idler ...
IS likely to fly off and out and "Have some fookers eye out
!!!!and that "
be warned :wink:
Vinny had to duck like a ninja when i stripped this one
.......my how he giggled :shock:
#Post#: 759--------------------------------------------------
Re: The internals of the steering relay
By: Fluffle-Valve Date: January 5, 2012, 4:43 pm
---------------------------------------------------------
I did wonder as to what was inside and more so, why not to just
undo everything and try and have your eye out.... ;)
#Post#: 945--------------------------------------------------
Re: The internals of the steering relay
By: rog8811 Date: January 6, 2012, 8:04 am
---------------------------------------------------------
I too wondered about the relays contents, it is easy to see how
it is all tensioned up to take out backlash with the taper
bearings.
Thanks!
#Post#: 968--------------------------------------------------
Re: The internals of the steering relay
By: ashowman Date: January 6, 2012, 9:04 am
---------------------------------------------------------
Do you have an approved method of putting it all back together
safely?
Might help those like me who are accident prone.
Cheers
Simon.
#Post#: 970--------------------------------------------------
Re: The internals of the steering relay
By: mistericeman Date: January 6, 2012, 9:11 am
---------------------------------------------------------
[quote author=ashowman link=topic=13.msg968#msg968
date=1325862240]
Do you have an approved method of putting it all back together
safely?
Might help those like me who are accident prone.
Cheers
Simon.
[/quote]
4 of long bolts + 4 nuts all matching to the thread of the
retaining bolt holes of the body of the relay .
Run nuts up the full length of the bolts
place 2 bolts opposing each other in each end of the relay and
seat them home
Start to tighten up each of the nuts a few turns at a time
keeping everything nice and even
Once the end caps are seated place the original bolts into the
remaining holes and tighten before removing long bolts and
fitting the final bolts
Long winded BUT greatly reduces the likelyhood of flying springs
etc
And dont forget to re-fill with oil
#Post#: 978--------------------------------------------------
Re: The internals of the steering relay
By: ashowman Date: January 6, 2012, 9:24 am
---------------------------------------------------------
Excellent, that'll stop me taking an eye out.
Cheers.
*****************************************************
