Re: Square Grinders
By: 660magnum Date: December 1, 2012, 10:28 pm
---------------------------------------------------------
You can get grinding wheels for these from Silvey, Bailey's, or
Madsens. Bailey's is a little more expensive than the others on
grind wheels.
There are several 8" wheels available. The standard wheel is the
Salmon wheel but you can get gray and white ones too. There is a
blue wheel that costs twice as much but it lasts longer that
Bailey's sells.
HTML http://silveychaingrinder.com/
HTML http://www.madsens1.com/mnu_grindjack.htm
HTML http://www.baileysonline.com/search.asp?catid=9760&skw=silvey%20grinder<br
/>
I have pictures of the Simington 450 and 451B grinder
instructions if anyone is interested but I will have to Email
them to you.
#Post#: 14078--------------------------------------------------
Re: Square Grinders
By: 660magnum Date: December 19, 2012, 8:37 pm
---------------------------------------------------------
My early model 1979 Silvey Swing Arm Grinder that at one time
had a red body, (Now mostly natural - as cast - aluminum.) and
what was originally a gold anodized arm. It has a new salmon
grinding wheel from Silvey. Most of the fasteners and all the
springs are new from the local hardware down the street but the
diamond dressers are the original as well as the motor and
switch. The original cord had been replaced by the previous
owner.
Simplicity itself.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/PC200004_zpsa3386510.jpg[/img]
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/PC200005_zps69be3bbd.jpg[/img]
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/PC200006_zpse62f36b3.jpg[/img]
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/PC200007_zps7f7d62fa.jpg[/img]
The new Silvey Swing Arm grinders have a different motor with
small vent holes around the sides that is bolted on differently.
Also the chain holder on the new style can be raised up and
down.
[img width=700
height=628]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveySwingArmSA_zps8ae7e7e1.png[/img]
#Post#: 14079--------------------------------------------------
Re: Square Grinders
By: 660magnum Date: December 19, 2012, 9:15 pm
---------------------------------------------------------
Notice in the pictures of these different grinders, they all use
the same size 8" wheel, but you see a gray one, a white grinding
wheel and a couple salmon color wheels. The white is easy to see
but disappears faster than the others. Silvey recommends the
salmon wheel which you can get from Silvey, or all of them from
Bailey's or Madsens.
#Post#: 14082--------------------------------------------------
Re: Square Grinders
By: 660magnum Date: December 20, 2012, 6:10 am
---------------------------------------------------------
Here are a series of Silvey Prosharp Square Chain Grinder
Details. This is more or less considered a Cadillac of The
Silvey Product Line. It is not currently produced and carries a
possible $2,000 price tag. This grinder is not set up on a stand
or mounted against the wall for use but is laying on its side on
a table.
To pull up on the lever places the chain cutter tooth into
position at the grinding wheel. There is a cable arrangement
actuated by the slide that pulls on a lever of the chain vice to
hold the chain steady. Then you turn the crank to feed the chain
cutter into grind wheel. This action presents the whole dressed
surface of the grinding wheel to the chain tooth at once. This
lets the all important dressed corner last much longer than on
the swing arm grinder whose feed action makes the top of the
dressed corner do all the work in grinding the inner face of the
top plate as it wipes across the under surface. This is a
feature of the Pro Sharp and SDM4 that makes them shine over the
Razur Sharp II and Swing Arm versions.
There are pre-set marks for the dressers and all the other
angles to make work chains or race chains. But you still have to
make sure that the dressed working corner of the grinding wheel
meets exactly the outer corner of the cutter on the chain.
I would like to mention here that there is a fourth Silvey
grinder design (SDM-4) that has chain rail holders like the Pro
sharp. But there are two of them and it is more or less a cross
between the Pro Sharp and the Razur Sharp II. The chain rails
are fastened on slide mechanisms and are fed into the grinding
wheel a little like on the Razur Sharp II but the grinding wheel
is mounted up at an angle.
The Pro Sharp chain rail assembly will pivot left and right for
the opposing cutters. The motor is reversible.
[img width=473
height=700]
HTML http://img.photobucket.com/albums/v11/jamesirl/prosharp.jpg[/img]
Silvey Prosharp Grinder Chain Holder Detail Showing Over All
Chain Holder Mechanism Detail
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp1_zpsfcf38ee6.jpg[/img]
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp2_zps34c1e22a.jpg[/img]
Silvey Prosharp Grinding Wheel Mounting - salmon, 8" X 3/16" X
1" hole
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp3_zps1f73af2d.jpg[/img]
Silvey Prosharp Grinder Showing Preset Marks For Adjustment
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp4_zps7c9d1365.jpg[/img]
Silvey Prosharp Grinder Slide Detail showing where vice cable
attaches under slide mechanism
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp5_zps4d663994.jpg[/img]
Silvey Prosharp Motor And Dresser Detail. The big black knob is
to swing the top plate dresser across the grinding wheel.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp6_zps5686fd80.jpg[/img]
Silvey Prosharp Chain Grinder Detail showing a glimpse of the
cable from the slide mechanism to the chain vice.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp7_zps06f8632b.jpg[/img]
Silvey Prosharp Showing Typical Marks For Preset chain Grinding
Angles Specific to the Prosharp Line Of Grinders
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp8_zps057e0439.jpg[/img]
Silvey Prosharp Showing Angle Of Grinding Wheel To Chain Cutter
Tooth and where vice cable enters vice area from the slide area.
[img width=525
height=700]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp9_zps47964954.jpg[/img]
Silvey Prosharp Gib Adjustments, return spring and orther
details of the slide mechanism
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp10_zpsce830f16.jpg[/img]
Silvey Prosharp Grinder Over All Detail Under Chain Holder
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp11_zps1f397ab9.jpg[/img]
Silvey Prosharp close up Grinder Motor which is used on all the
current Silvey square grinders.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyProSharp12_zps94776928.jpg[/img]
Here are a couple short videos showing the Pro Sharp and SDM-4
in action to give you an idea how they work.
HTML http://www.madsens1.com/GRAPHICS/Silvey/Prosharp.wmv
HTML http://www.madsens1.com/GRAPHICS/Silvey/sdm4.wmv
[IMG]
HTML http://img.photobucket.com/albums/v11/jamesirl/sdm4.jpg[/img]
#Post#: 14083--------------------------------------------------
Re: Square Grinders
By: Gatekeeper Date: December 20, 2012, 6:27 am
---------------------------------------------------------
That's the best pictures I've seen of a pro sharp. I would like
one but never would come off with the money.
#Post#: 14084--------------------------------------------------
Re: Square Grinders
By: 660magnum Date: December 20, 2012, 8:04 am
---------------------------------------------------------
Here are a series of Silvey Razur Sharp II Square Chain Grinder
Pictures. The grinder is more related to the swing arm grinder
than the Pro Sharp series. The Razur Sharp differs from the
swing arm in that it has two separate chain holders. One on each
side. You sharpen the right hand cutters on one side and then
move the chain over to the other side to do the left hand
cutters. The chain holders are mounted on a common slide
mechanism fed by a single lever on the end of the machine. This
grinder is commonly mounted on a tripod style stand. Actually,
the grinder is light enough that it can be moved out of the way
when not needed. This particular one is not mounted on a stand
but is setting on a piece of slab wood on a big rock. It was
moved out doors for the pictures.
Silvey Razur Sharp II Square Grinder Over All View from Feed
End.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyRazursharpA_zps7678ac21.jpg[/img]
Silvey Razur Sharp II Top View from the mounting end. Note the
mounting hole at the bottom of the picture where the grinder
assembly mounts on the stand. Also take note of the off-on
switch mounted on the motor. Typically, the switch is pulled
towards you when you are in the operator's position to make the
grinding wheel turn in the proper direction to approach the
cutter tooth you are sharpening from the outside. I this picture
you can see the two grinding wheel dressers. There's one for the
edge of the wheel that shapes the side of the chain cutter tooth
and there's one for the top of the wheel that forms the top
plate angle on the chain's cutter tooth.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyRazursharpD_zpsdf791beb.jpg[/img]
Silvey grinder mounting stand for Razur Sharp II and Swing Arm
Grinders. This is a older model and not the current design shown
in the downloadable operator manuals.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyRazurSharpIIF_zps954b70c2.jpg[/img]
Silver Razur Sharp II and disassembled stand
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyRazurSharpIIA_zpse5ccde5a.jpg[/img]
Silvey Razur Sharp II showing detail of adjustment to compensate
for grinding wheel wear. Look at some of the over all pictures
to take note of this bolt's location.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyRazurSharpeIIB_zps183d6213.jpg[/img]
Silvey Razur Sharp II grinder showing slide assembly, bellows
type dust guard, feed stops, and chain stop adjustments. The
feed handle extends from the bottom center of the picture. This
lever is also shown a couple pictures above this one.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyRazursharpH_zps868308cc.jpg[/img]
Silvey Razur Sharp II showing right hand chain holder detail
including chain stop and adjustment, and feed stop adjustment
knob. This assembly is duplicated in reverse on the other side
of the grinder for the left hand cutters.
[img width=700
height=525]
HTML http://img.photobucket.com/albums/v11/jamesirl/SilveyRazursharpG_zps3c1e656b.jpg[/img]
Simington S-495 Grinder made like a Silvey Razur Sharp I. Notice
the "Blue Wheel" that cost twice as much as a Salmon wheel and
lasts a little longer.
[IMG]
HTML http://img.photobucket.com/albums/v11/jamesirl/5956d1055978155-simington-square-gr.jpg[/img]
[IMG]
HTML http://img.photobucket.com/albums/v11/jamesirl/6180d1057951774-simington-495-jpg.jpg[/img]
#Post#: 14111--------------------------------------------------
Re: Square Grinders
By: 660magnum Date: December 20, 2012, 7:48 pm
---------------------------------------------------------
Using a late model Silvey Swing Arm grinder
HTML http://www.youtube.com/watch?v=Lnqpq2-cubc
This is SRCarr's Razur Sharp II after he trued up everything and
made a new slide using cam followers on a red neck milling
machine using a heavy drill press and a HF feed table.
HTML http://www.youtube.com/watch?v=-WD4MaAfSwM
HTML http://www.youtube.com/watch?v=bPypqFbI_vk
Brad Snelling's Razur Sharp II grinder. Notice where someone has
run the chain stops into the wheel . . .
HTML http://www.youtube.com/watch?v=A5g8TyXUDHs
Rich Dougan the Chainsaw Guy and his ZygMyer square grinder.
Take notice that this grinder has a mist type cooling system to
keep the chain tooth cool.
HTML http://www.youtube.com/watch?v=MSHiIb2Tgwg
#Post#: 14203--------------------------------------------------
Re: Square Grinders
By: Chainsawrepair Date: December 21, 2012, 9:16 pm
---------------------------------------------------------
Somebody is reading and learning this stuff big time. 8)
I dont think I am smart enough to use them there fancy square
grinders. :P
#Post#: 14204--------------------------------------------------
Re: Square Grinders
By: 660magnum Date: December 21, 2012, 10:15 pm
---------------------------------------------------------
One glimpse at the grinding wheel in these pictures tells me
that the all important corner is dull and needs to have the
dirty color lightly dressed from the corner and another light
pass taken on the cutters before the chain sharpening is
finished. I can tell that the top angle on the stone is dull
because it has a dirty look to it right at the corner.

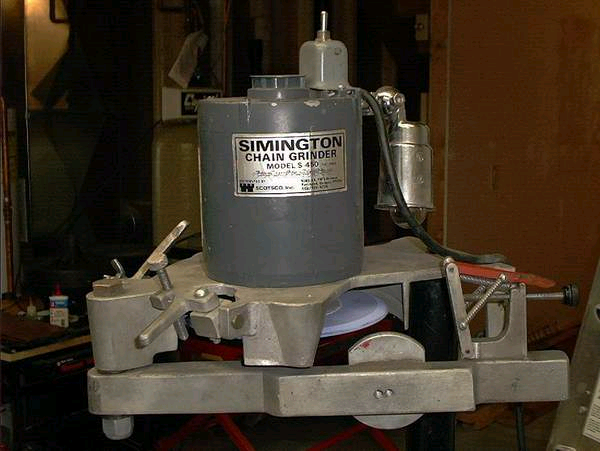

HTML http://img.photobucket.com/albums/v11/jamesirl/simington450.png
Even watching this video of the German sharpener, I can see the
grinding wheel is dirty in the corner as Rich is taking pretty
healthy cuts on the chain. He will need to touch up the stone
and make a light pass on the chain before it is finished. You
will notice that the top side of the corner gets dull first as
it has to do the most cutting.
HTML http://www.youtube.com/watch?v=MSHiIb2Tgwg
#Post#: 14205--------------------------------------------------
Re: Square Grinders
By: 3000 FPS Date: December 21, 2012, 10:33 pm
---------------------------------------------------------
Very nice presentation 660magnum. It is great reading and full
of lots of good information. I would like to have a square
grinder but I am not up for the kind of money it takes.
*****************************************************
DIR Next Page
