       # TEAC CORPORATION

          CD-532S

          Device Type       Internal CD-ROM
          Interface         SCSI
          Spin Rate (Read)  2x, 4x, 8x, 32x
          Formats Supported CD-XA, CD-DA, CD-R, CD-RW, CD-I, CD-ROM
          Read              (Mode 1 & Mode 2),

                            Photo-CD, Video-CD, CD-Plus
          View              Top

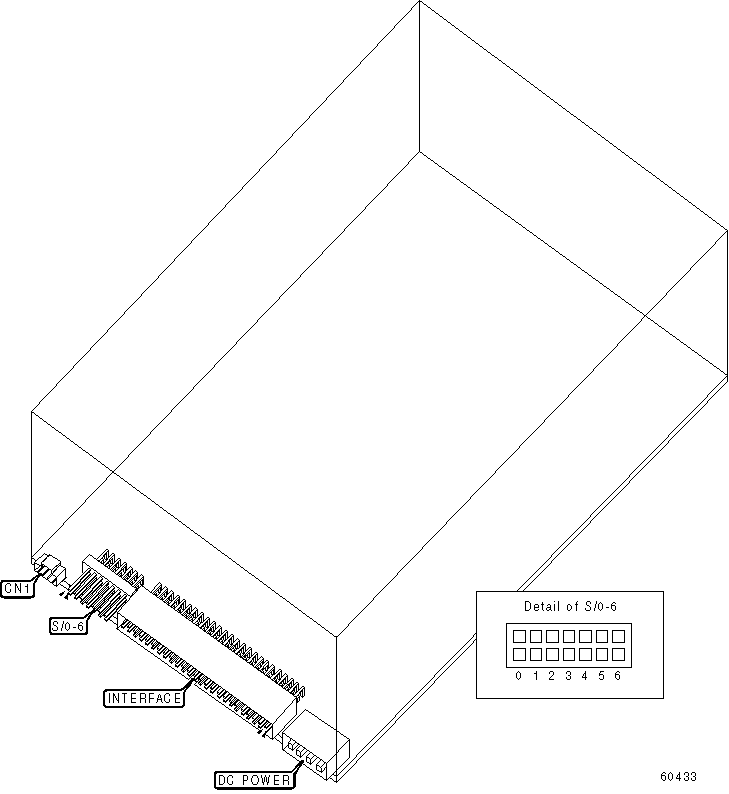

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | Audio line out                |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Setting                 | Label | Position  |
          |----------------------------------------+-------+-----------|
          | í Parity check enabled                 |  S/3  |   Open    |
          |----------------------------------------+-------+-----------|
          | Parity check disabled                  |  S/3  |  Closed   |
          |----------------------------------------+-------+-----------|
          | í Block size set at 2048               |  S/4  |   Open    |
          |----------------------------------------+-------+-----------|
          | Block size set at 512                  |  S/4  |  Closed   |
          |----------------------------------------+-------+-----------|
          | í Termination disabled                 |  S/5  |   Open    |
          |----------------------------------------+-------+-----------|
          | Termination enabled                    |  S/5  |  Closed   |
          |----------------------------------------+-------+-----------|
          | í Factory configured - do not alter    |  S/6  |   Open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      DRIVE SELECT ID                       |
          |------------------------------------------------------------|
          |   Drive ID    |     S/0      |     S/1      |     S/2      |
          |---------------+--------------+--------------+--------------|
          |       0       |     Open     |     Open     |     Open     |
          |---------------+--------------+--------------+--------------|
          |       1       |    Closed    |     Open     |     Open     |
          |---------------+--------------+--------------+--------------|
          |       2       |     Open     |    Closed    |     Open     |
          |---------------+--------------+--------------+--------------|
          |      í 3      |    Closed    |    Closed    |     Open     |
          |---------------+--------------+--------------+--------------|
          |       4       |     Open     |     Open     |    Closed    |
          |---------------+--------------+--------------+--------------|
          |       5       |    Closed    |     Open     |    Closed    |
          |---------------+--------------+--------------+--------------|
          |       6       |     Open     |    Closed    |    Closed    |
          |---------------+--------------+--------------+--------------|
          |       7       |    Closed    |    Closed    |    Closed    |
          +------------------------------------------------------------+
