       # PINNACLE MICRO, INC.

          RCD 5040 (EXTERNAL)

          Device Type           Recordable CD
          Interface             SCSI-1
          Spin Rate - Read      4x
          Spin Rate - Write     2x
          Formats Supported     Unidentified

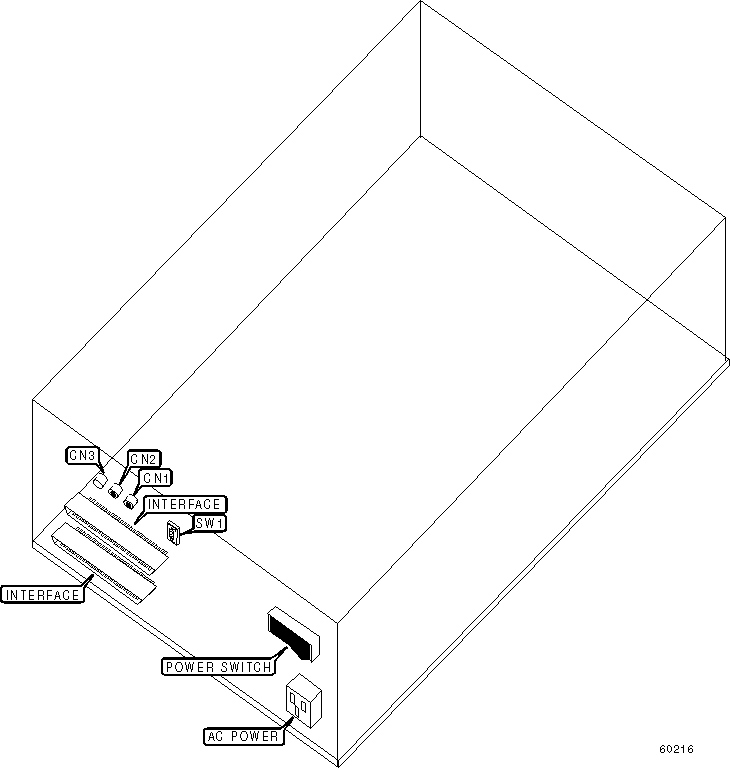

          View                  Top

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |         Function          | Label |    Function    | Label |
          |---------------------------+-------+----------------+-------|
          | Audio out - right channel |  CN1  | Chassis ground |  CN3  |
          |---------------------------+-------+----------------+-------|
          | Audio out - left channel  |  CN2  |                |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             DIAGNOSTIC LED(S) - NOT DIAGRAMMED             |
          |------------------------------------------------------------|
          |     LED     | Color  |  Status  |        Condition         |
          |-------------+--------+----------+--------------------------|
          |   Speed -   | Green  |    On    |   4x and 2x spin rate    |
          | front panel |        |          |                          |
          |-------------+--------+----------+--------------------------|
          |   Speed -   | Yellow |    On    |       1x spin rate       |
          | front panel |        |          |                          |
          |-------------+--------+----------+--------------------------|
          |   Speed -   |  N/A   |   Off    |     No disc inserted     |
          | front panel |        |          |                          |
          |-------------+--------+----------+--------------------------|
          |   Busy -    | Green  |    On    |  Reading data from disc  |
          | front panel |        |          |                          |
          |-------------+--------+----------+--------------------------|
          |   Busy -    | Yellow |    On    | Writing data or audio to |
          | front panel |        |          |           disc           |
          |-------------+--------+----------+--------------------------|
          |   Busy -    | Yellow | Blinking |      Playing audio       |
          | front panel |        |          |                          |
          |-------------+--------+----------+--------------------------|
          |   Busy -    |  N/A   |   Off    | Idle or no disc inserted |
          | front panel |        |          |                          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               MISCELLANEOUS TECHNICAL NOTES                |
          |------------------------------------------------------------|
          | SCSI ID selection:                                         |
          |                                                            |
          | SW1 is for SCSI ID selection, 0 through 7. Default setting |
          | is 2. To select SCSI ID, turn off the power, press the top |
          | button to increase value and the bottom button to decrease |
          | value. The new SCSI ID will be registered when the power   |
          | is turned on then off again.                               |
          |                                                            |
          | Termination:                                               |
          |                                                            |
          | When terminating the drive, make sure the power is turned  |
          | off, then plug a passive SCSI-1 terminator block to one of |
          | the SCSI-1 ports on the back panel.                        |
          |                                                            |
          | Host adapter for the RCD 5040 in a PC system is Adaptec    |
          | AHA-1535.                                                  |
          +------------------------------------------------------------+
