       # PANASONIC INDUSTRIAL COMPANY

          CR-562-B

          Device Type       CD-ROM
          Interface         ATAPI
          Spin Rate         2x
          Formats Supported Unidentified

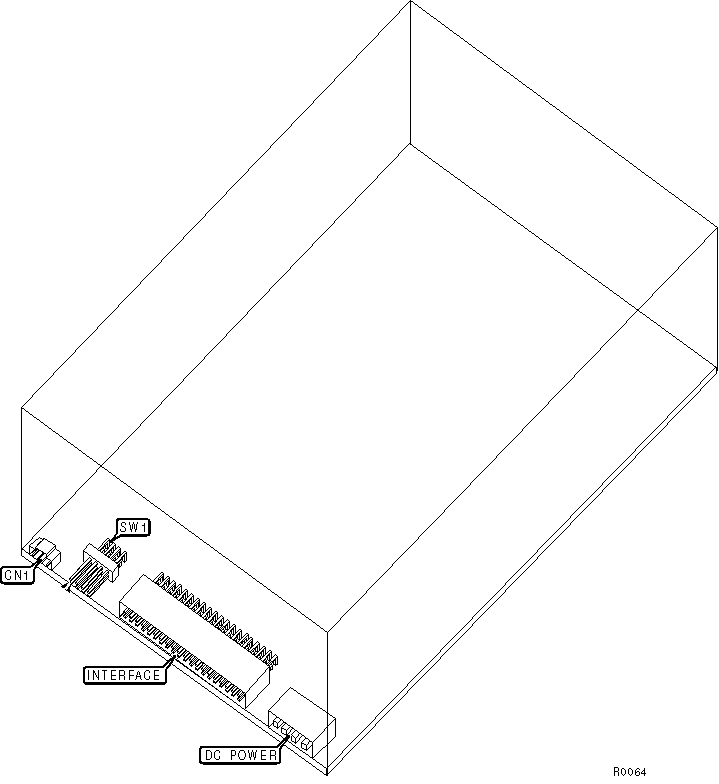

          View              Top

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                 Function                 |      Label      |
          |------------------------------------------+-----------------|
          |          Unidentified connector          |       CN1       |
          |------------------------------------------------------------|
          |    Note: The diagram above depicts this connector as a     |
          |                       CD-audio jack.                       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      DRIVE SELECT ID                       |
          |------------------------------------------------------------|
          |  Drive ID  |   SW1/1    |   SW1/2   |   SW1/3   |  SW1/4   |
          |------------+------------+-----------+-----------+----------|
          |     0      |   Closed   |   Open    |   Open    |   Open   |
          |------------+------------+-----------+-----------+----------|
          |     1      |    Open    |  Closed   |   Open    |   Open   |
          |------------+------------+-----------+-----------+----------|
          |     2      |    Open    |   Open    |  Closed   |   Open   |
          |------------+------------+-----------+-----------+----------|
          |     3      |    Open    |   Open    |  Closed   |   Open   |
          |------------+------------+-----------+-----------+----------|
          |     4      |   Closed   |  Closed   |  Closed   |   Open   |
          +------------------------------------------------------------+
