       # PLEXTOR

          4PLEX (PX-43CH INTERNAL) REV.2

          Device Type       CD-ROM
          Interface         SCSI
          Spin Rate         4x
          Formats Supported CD-DA,CD-I, CD-ROM (Mode 1), CD-XA (Mode 2,
                            Form1 & Form 2), Photo-CD, Video CD (MPEG)

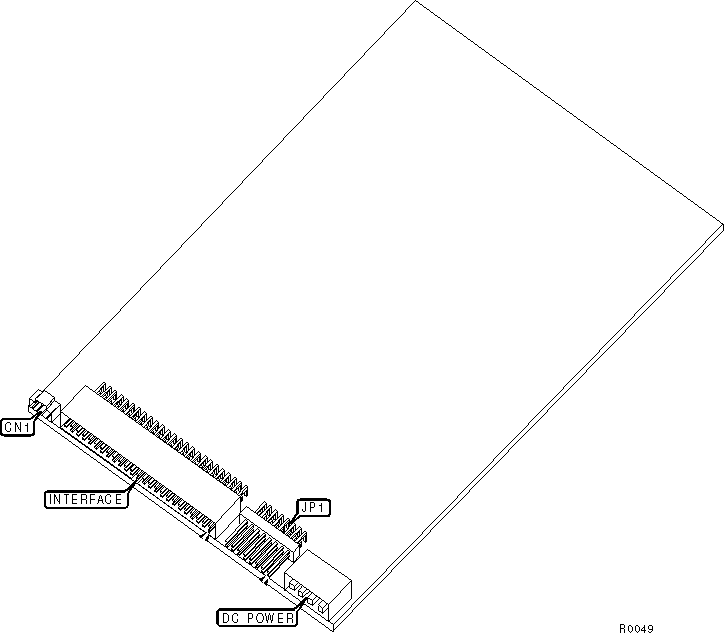

          View              Bottom

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | Audio line out                |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                 Setting                 | Label | Position |
          |-----------------------------------------+-------+----------|
          | » | CD tray allowed to be ejected       | JP1/1 |   Open   |
          |---+-------------------------------------+-------+----------|
          |   | CD tray does not open & the eject   | JP1/1 |  Closed  |
          |   | button is disabled                  |       |          |
          |---+-------------------------------------+-------+----------|
          | » | Non UNIX system in use              | JP1/2 |   Open   |
          |---+-------------------------------------+-------+----------|
          |   | UNIX system in use                  | JP1/2 |  Closed  |
          |---+-------------------------------------+-------+----------|
          |   | Factory configured - do not alter   | JP1/3 |   Open   |
          |---+-------------------------------------+-------+----------|
          | » | Normal operation mode               | JP1/4 |  Closed  |
          |---+-------------------------------------+-------+----------|
          |   | Audio signal reproduction mode      | JP1/4 |   Open   |
          |---+-------------------------------------+-------+----------|
          | » | Parity check enabled                | JP1/5 |  Closed  |
          |---+-------------------------------------+-------+----------|
          |   | Parity check disabled               | JP1/5 |   Open   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      DRIVE SELECT ID                       |
          |------------------------------------------------------------|
          |    Drive ID    |    JP1/6     |    JP1/7     |    JP1/8    |
          |----------------+--------------+--------------+-------------|
          |     |    0     |     Open     |     Open     |    Open     |
          |-----+----------+--------------+--------------+-------------|
          |     |    1     |     Open     |     Open     |   Closed    |
          |-----+----------+--------------+--------------+-------------|
          | »   |    2     |     Open     |    Closed    |    Open     |
          |-----+----------+--------------+--------------+-------------|
          |     |    3     |     Open     |    Closed    |   Closed    |
          |-----+----------+--------------+--------------+-------------|
          |     |    4     |    Closed    |     Open     |    Open     |
          |-----+----------+--------------+--------------+-------------|
          |     |    5     |    Closed    |     Open     |   Closed    |
          |-----+----------+--------------+--------------+-------------|
          |     |    6     |    Closed    |    Closed    |    Open     |
          |-----+----------+--------------+--------------+-------------|
          |     |    7     |    Closed    |    Closed    |   Closed    |
          +------------------------------------------------------------+
